For runways, these markings indicate where aircraft MUST STOP when approaching a runway. They consist of four yellow lines, two solid and two dashed, spaced six or twelve inches apart, and extending across the width of the taxiway or runway. The solid lines are always on the side where the aircraft must hold.
How do you read a runway?
Plainly put, airport runways are numbered according to compass bearings. This means runway numbers are based on the compass with 360 representing north, 90 representing east, 180 representing south, and 270 representing west. Runways are numbered between 01 and 36.
What is the important of runway markings?
Runway markings, signs and lighting are important in enabling the airplane to navigate the surface and avoid incursions on the runway. They help the pilot in knowing his location on the runway or taxiway. These markings and signs provide useful information to a pilot when landing, taking off or taxiing.
What do chevrons mean on a runway?
Indicate areas of pavement aligned with the runway that are unusable for taxi, takeoff, or landing. Chevrons cover blast pads or stopways, which are constructed to protect areas from erosion caused by jet blast and to provide extra stopping distance for aircraft (stopways).
What are the color of the runway markings and hold lines?
What are the color of the runway markings and runway hold lines? White Runway markings and yellow runway hold lines. _______ are the portion of the airfield where aircraft or helicopters are parked before, after, or between flights, and for servicing and maintenance. Aprons.
Are runway numbers true or magnetic?
Airport runways are perhaps the most visible example of a navigation aid updated to match shifts in Earth’s magnetic field. By FAA rules, runways are numbered according to the points on a compass, from 1–36, reflecting the magnetic compass reading to the nearest 10 degrees and dropping the last digit.
Why do runways cross?
Crosswinds make landing more difficult. Thus airports will often have runways aligned at different angles and sometimes intersecting each other, because of the capricious wind directions. A very important reason is to provide an alternative runway to align with the wind.
What does L and R mean on runways?
The ”L” and ”R” designate the relative position (left or right) of each runway respectively when approaching/facing its direction. A small number of airports have three parallel runways—the runway in the middle gets a “C” for center.
How long are runway stripes?
A runway centerline marking consists of a line of uniformly spaced stripes and gaps and of uniform width. (1) The stripes are 120 feet (36.5 m) in length and the gaps are 80 feet (24.3 m) in length.
How do pilots line up with the runway?
Pilots use GPS or a radio navigation system called the Instrument Landing System to funnel the aircraft down an approach path to line the aircraft up directly in line with the runway. High-intensity approach lighting systems help the pilots find the runway at night or when breaking out of the cloud.
Article first time published on
How long are Thousand Foot markers?

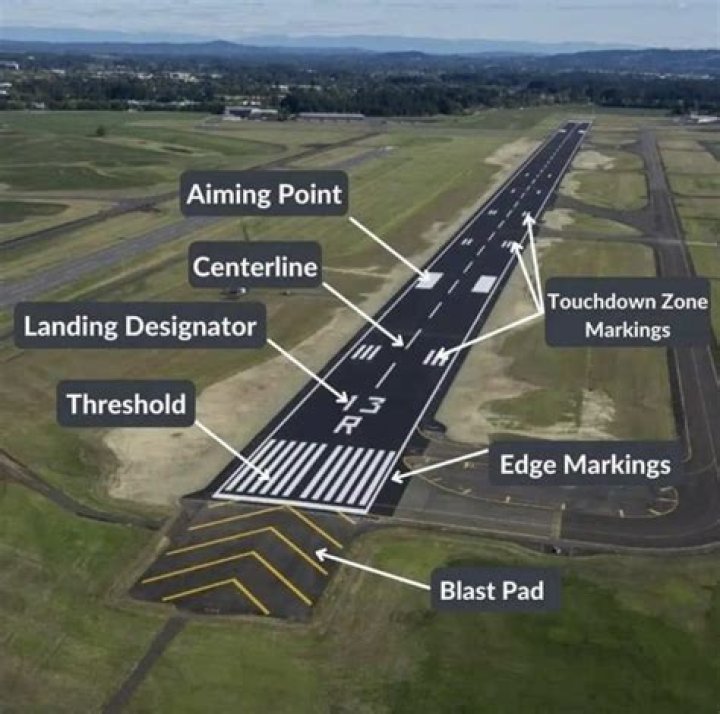

Aiming point markings Sometimes called “thousand-footers,” they are located about 1,000 feet from the threshold and provide a visual target for landing operations.
What are runway guard lights?
FAA L-804(L) and ICAO The L-804(L) Runway Guard Light is an elevated unidirectional flashing yellow light fixture that provides a distinctive warning to pilots that they are approaching a runway holding position and are about to enter an active runway.
What color are runway lights?
The runway edge lights are white, except on instrument runways yellow replaces white on the last 2,000 feet or half the runway length, whichever is less, to form a caution zone for landings.
Why do airport runways intersect?
Many airports have intersecting runways, often as a consequence of expansion but also to provide a minimal crosswind option where wind direction is variable.
What is the runway threshold?
The runway thresholds are markings across the runway that denote the beginning and end of the designated space for landing and takeoff under non-emergency conditions. The runway safety area is the cleared, smoothed and graded area around the paved runway.
Can you cross an inactive runway?
Instructions to cross a runway will be issued one at a time. Instructions to cross multiple runways will not be issued. An aircraft or vehicle must have crossed the previous runway before another runway crossing is issued. This applies to any runway including inactive or closed runways.
What direction do runways face?
They blow away from the poles and curve east to west. Hence, most of the runways are Eastish-Westish (not exactly East-West). Runway directions are largely chosen both for geographic land features of the site of the airport as well as the average local wind directions.
How long is a runway?
“I hope this runway’s long enough!” Between these two runway extremes sits a “typical” commercial airline runway length: roughly between 8,000 feet (2,438 meters) and 13,000 feet (3,962 meters).
Are runways true north or magnetic north?
No, runways use Magnetic North as a reference. Think about it, the aircraft is looking to line up on a particular runway and once the runway is visually acquired, the pilot will use the magnetic compass to verify that the aircraft is aligned to the correct runway.
How long are runway aiming points?
The aiming points are 150 feet long and 20 feet wide. If a runway is shorter than 4,200 feet, the aiming points may be shortened to 100 feet in length.
What is a precision runway?
Precision instrument runway means a runway having an existing instrument approach procedure utilizing air navigation facilities or other equipment that provide both horizontal and vertical guidance. This also includes a runway for which a precision instrument approach procedure has been approved or planned.
What markings will you find on a precision runway?
They consist of four yellow lines, two solid and two dashed, spaced six or twelve inches apart, and extending across the width of the taxiway or runway. The solid lines are always on the side where the aircraft is to hold. There are three locations where runway holding position markings are encountered.
How are 4 parallel runways named?
If more than 3 parallel runways exist, then some of the runways are named to the nearest one-tenth magnetic azimuth and the other adjacent runways are designated to the next one-tenth. For example, a group of four parallel runways (facing North) can be designated as e.g. 36L, 36R, 35L and 35R.
What does the 4 letter code of the ICAO for airports stand for?
ICAO, an international aviation organisation based on the United Nations, founded in 1947. It stands for International Civil Aviation Organisation.
What is the busiest single runway airport?
San Diego International Airport is the busiest single-runway airport in the world.
Why do planes do not fly over the Pacific?
The primary reason airplanes don’t fly over the Pacific Ocean is because curved routes are shorter than straight routes. Flat maps are somewhat confusing because the Earth itself isn’t flat. Rather, it’s spherical. As a result, straight routes don’t offer the shortest distance between two locations.
How does pilot see at night?
Pilots rely on flight instruments, navigation sensors and weather sensors (primarily radar) instead of normal vision when flying at night or passing through cloud. … Other lights on a plane include red and green LEDS on each wing which identity which direction the plane is facing when flying at night.
How do pilots see runways?
When clouds surround an airport, pilots have been able to find the path to the runway for decades by using an Instrument Landing System, or ILS. Ground-based transmitters project one radio beam straight down the middle of the runway, and another angled up from the runway threshold at a gentle three degrees.
Where should you touch down on runway?
The AIM defines the touchdown zone simply enough: “The first 3,000 feet of the runway beginning at the threshold.”It’s common for pilots to have forgotten the definition of the touchdown zone, likely last remembered during a cram session for the instrument rating oral exam.
What do white crosses on a runway mean?
Markings for runways are white. Markings defining the landing area on a heliport are also white except for hospital heliports which use a red “H” on a white cross. Markings for taxiways, areas not intended for use by aircraft (closed and hazardous areas), and holding positions (even if they are on a runway) are yellow.
Where do you aim on a runway?
Runway Aim Point Markings The aiming point marking serves as a visual aiming point for a landing aircraft. These two rectangular markings consist of a broad white stripe located on each side of the runway centerline and approximately 1,000 feet from the landing threshold, as shown in [the figure].
